Naked Delica revisited, a high HG on an FFG Delica .. a little bit of fun

dbcad · #1

I was able tp get in early and do some fun tweaks to the original Naked Delica. I saved a copy of the the original assembly and all of it's components into a seperate folder and decided to play :) What would a FFG Delica look like with a high hollow grind?

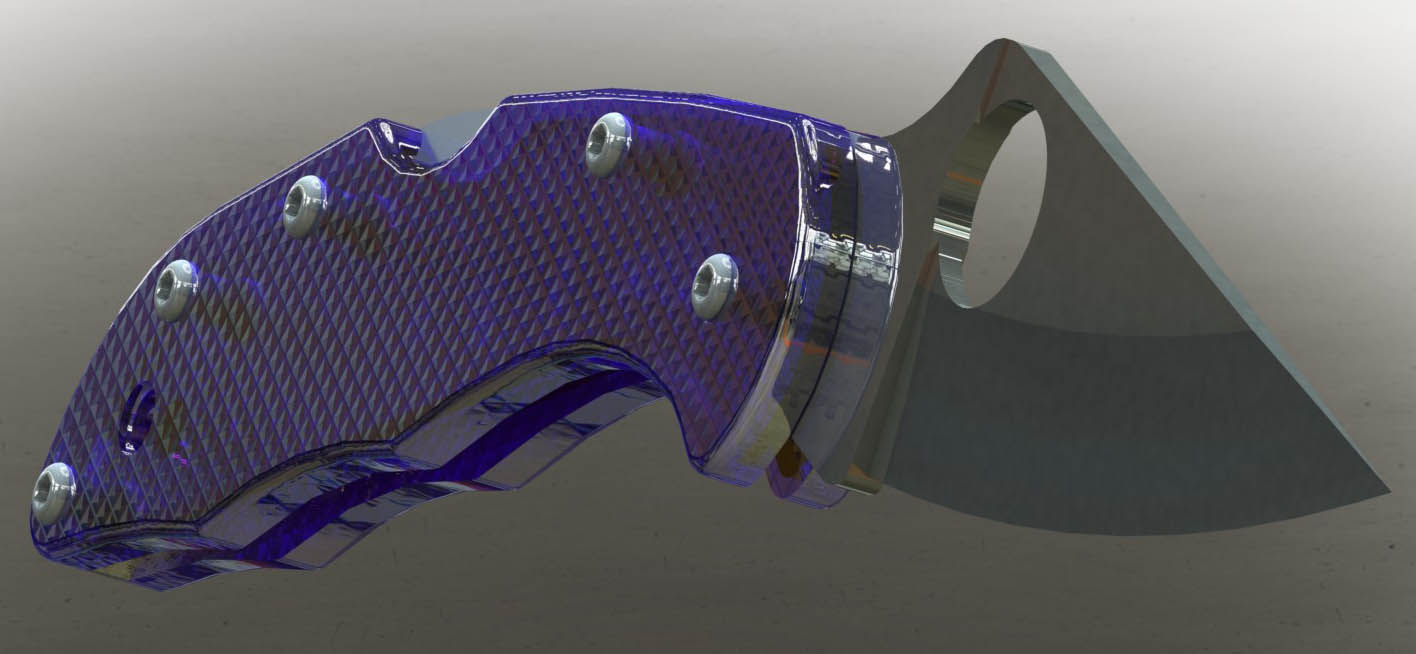

Modifications to the components was completed pretty quickly, the scales in acrylic :eek: , colored purple :eek: , brass liners :eek: , simple diamond knurled texture, and a high HHG.

An impractical design, but fun and instructive to try virtually :D

Enjoy the pics :)

dbcad · #2

And.....

dbcad · #3

And....

dbcad · #4

And.................All for fun and not checked for fitting or anything else :) Made some pretty cool pictures though :D

I'll try more as time allows :)

mattman · #5

Sweet!

Excellent work, Charlie! Thanks for sharing!

(really makes me want a translucent FRCP Delica!)

dbcad · #6

Oops, I have one more :o :.... Theoreticaly a .005" edge going to zero :eek:

jmh58 · #7

Way NICE!!!! John

dbcad · #8

These pics today are just the result of a burr I felt this morning on my drive to work, nothing more than an enjoyment of HG and to build further on what I have with the original project within the constraints of my work (rendering in the backround), sharing pics is just icing on the cake

......

Any constructive criticism is welcome :)

Donut · #9

The grind should be higher. Look at the Dragonfly Salt!

dbcad · #10

Donut wrote:The grind should be higher. Look at the Dragonfly Salt!

A simple matter of changing a couple of dimensions and maybe upping the radii on the curve of the hollow :) I'll shoot for it Monday morn :)

BatCountry9 · #11

I love this design. I'd probably snap the tip off immediately, but I don't care. Love the purple accents, too.

Evil D · #12

I actually surprised nobody has tried to put a Delica together without the scales. You would need shorter screws and studs but it would be pretty cool and really light.

dbcad · #13

Evil D wrote:I actually surprised nobody has tried to put a Delica together without the scales. You would need shorter screws and studs but it would be pretty cool and really light.

That's easy David :) I'll shoot for that idea too :) Backspacer would have to be between the liners only.........I'll save another copy and pillage bit as I have time :) Thanks for the idea :)
