Anodized my NAND and oxidized my screws

#1

Post by Pengubandit »

I was getting a little bored with the plain titanium look of my nand so I did a fishscale (blue to yellow/ green) gradient to my NAND. Had previously done something similar to my Ti Demko and was happy with the results. The stonewash texture underneath looks great with the color.

It was pretty easy with a 48vdc power supply at 1A and a baking soda jar. I started fully submerged and started slowly pulling it out as it turned blue. Screws i just heated on my glass cooktop at full power until they were yellow/ tan then i just dunked them in a bowl of water.

:smlling-eyes .
Attachments
Current favorite Spydies: Drunken, Spydiechef, Sage5 LW Rex121, Manix 2 LW 15V BBB
Favorite materials. Steel: Maxamet, Rex121, 15V, S90V, Magnacut. Scales: Carbon Fiber, Titanium, Micarta, G10, FRN.
User avatar
TkoK83Spy
Member
Posts: 13806
Joined: Mon Sep 17, 2018 5:32 pm
Location: Syracuse, NY

Re: Anodized my NAND and oxidized my screws

#2

Post by TkoK83Spy »

Looks pretty good! Props to you for thinking outside the box.
I don't want to hear about the action of your knife - Rick
w3tnz
Member
Posts: 975
Joined: Mon Jan 30, 2012 8:21 pm

Re: Anodized my NAND and oxidized my screws

#3

Post by w3tnz »

Looks good, interested to hear how the baking soda method holds up. Always wanted to try my hand at it but haven't the acids usually recommended
I see, said the blind man.
User avatar
BeggarSo
Member
Posts: 1213
Joined: Sun Sep 12, 2021 6:50 pm

Re: Anodized my NAND and oxidized my screws

#4

Post by BeggarSo »

Nice work show us your setup please.

Can steel blades be anodized?
Really wanting to buy a 15V Serrated Bodacious. Well a guy can dream, can’t he? :sparkler
User avatar
Mushroom
Member
Posts: 9015
Joined: Tue Jan 06, 2015 1:45 pm
Location: Boston, Ma. U.S.A. Earth

Re: Anodized my NAND and oxidized my screws

#5

Post by Mushroom »

Nice, those scales look great!
tzirconia
Member
Posts: 140
Joined: Sat Feb 17, 2024 5:14 pm

Re: Anodized my NAND and oxidized my screws

#6

Post by tzirconia »

That looks great, nicely done!
Red Leader
Member
Posts: 1164
Joined: Thu Oct 17, 2024 9:35 am

Re: Anodized my NAND and oxidized my screws

#7

Post by Red Leader »

Wow, looks great.
Member of the Golden 3V folder Campaign Crew
User avatar
Paul Ardbeg
Member
Posts: 1758
Joined: Sun May 14, 2023 11:39 am
Location: The Netherlands, EU, Earth

Re: Anodized my NAND and oxidized my screws

#8

Post by Paul Ardbeg »

Niceley done 👌
:bug-red-white Knife nut & Spydie aficionado :bug-red

MNOSD member #0052

***Memento mori, memento vivere***
User avatar
u.w.
Member
Posts: 745
Joined: Mon Apr 09, 2018 7:25 am
Location: VABch

Re: Anodized my NAND and oxidized my screws

#9

Post by u.w. »

wow! that looks really good!

thanks for sharing,

u.w.
User avatar
Manixguy@1994
Member
Posts: 18667
Joined: Fri Jun 10, 2016 12:12 pm
Location: Central Illinois
Contact:

Re: Anodized my NAND and oxidized my screws

#10

Post by Manixguy@1994 »

Looks great , very impressive ! MG2
MNOSD 0002 / Do more than is required of you . Patton
Nothing makes earth so spacious as to have friends at a distance; they make the latitudes and longitudes.
Henry David Thoreau
J D Wijbenga
Member
Posts: 550
Joined: Fri Sep 24, 2004 10:33 am
Location: Netherlands

Re: Anodized my NAND and oxidized my screws

#11

Post by J D Wijbenga »

That looks really nice!
User avatar
Pengubandit
Member
Posts: 101
Joined: Tue Feb 24, 2026 11:26 pm
Location: Connecticut

Re: Anodized my NAND and oxidized my screws

#12

Post by Pengubandit »

BeggarSo wrote:
Fri Mar 27, 2026 7:55 pm
Nice work show us your setup please.

Can steel blades be anodized?
No, steel doesnt respond the same way as titanium, this method only works for Ti sadly. You can color change steel with heat, a torch, oven or hot plate work of depending on temps/colors you're targeting. Check out Clickspring on YouTube on how to blue steel really well.

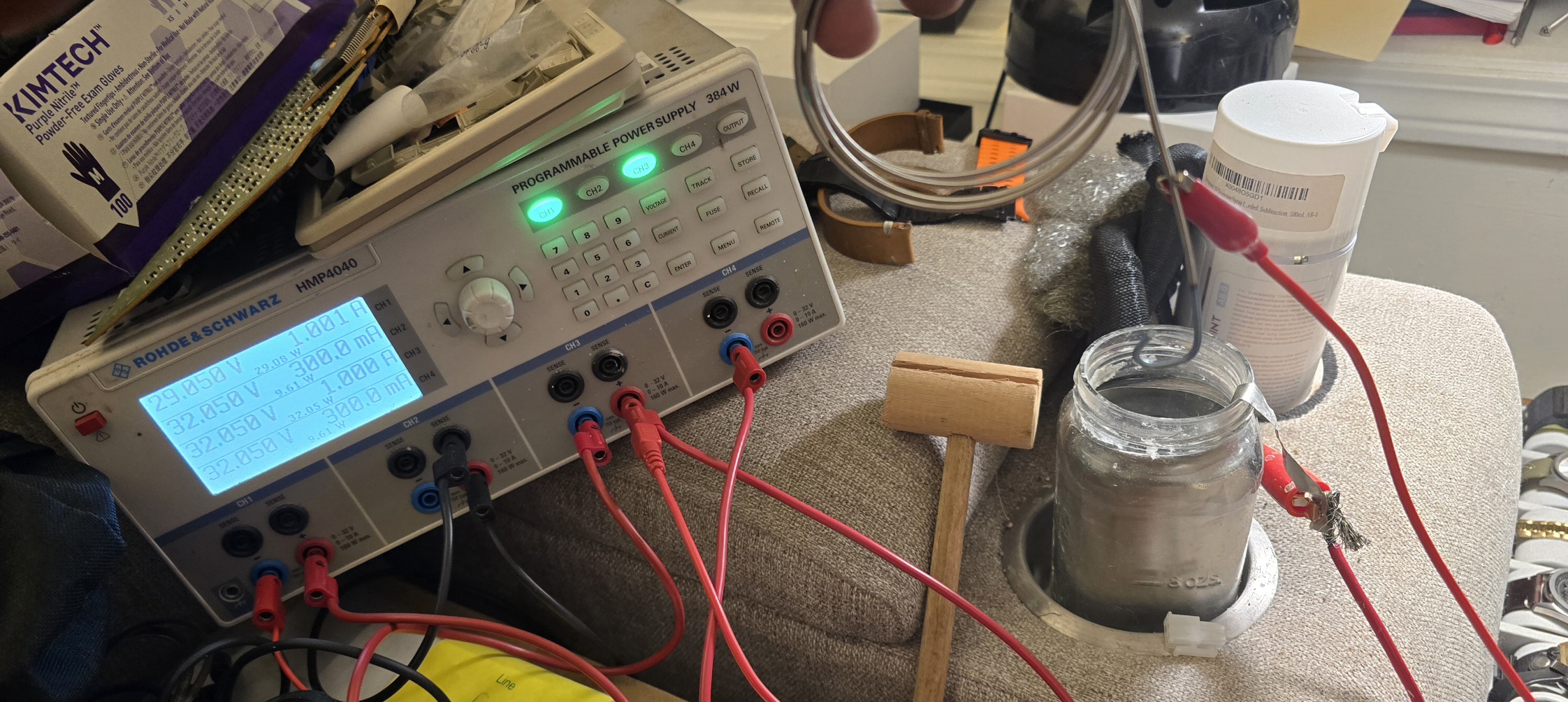

Don't judge the mess too much but here's the setup. Powe supply, some cables. Little bit of titanium wire and an old pasta sauce jar. You dont need a fancy power supply, you could even do it with a bunch of 9v batteries in series. The solution is just a tablespoon of baking soda and distilled water, ive used tap water before and it's fine.

See the charts below for achievable colors. Polished surfaces work best.
Steel  Heat = Color
Steel Heat = Color

Titanium Votage = Color
Titanium Votage = Color
Current favorite Spydies: Drunken, Spydiechef, Sage5 LW Rex121, Manix 2 LW 15V BBB
Favorite materials. Steel: Maxamet, Rex121, 15V, S90V, Magnacut. Scales: Carbon Fiber, Titanium, Micarta, G10, FRN.
User avatar
BeggarSo
Member
Posts: 1213
Joined: Sun Sep 12, 2021 6:50 pm

Re: Anodized my NAND and oxidized my screws

#13

Post by BeggarSo »

That is really cool thanks for the detailed reply, Is this just a hobby?

The reason I ask is years ago when I was an Automotive Tech, the rolling carts we used looked allot worse than your work area which to me means frequent use.

It made your presentation totaly real and relatable, great work by the way I'll bet Sal likes it.
Really wanting to buy a 15V Serrated Bodacious. Well a guy can dream, can’t he? :sparkler
User avatar
Pengubandit
Member
Posts: 101
Joined: Tue Feb 24, 2026 11:26 pm
Location: Connecticut

Re: Anodized my NAND and oxidized my screws

#14

Post by Pengubandit »

Haha, yeah very infrequent use. Once every couple of months maybe.

Someday I might turn it into a semi-profession but for now I'm experimenting, modding/customizing and learning.
Current favorite Spydies: Drunken, Spydiechef, Sage5 LW Rex121, Manix 2 LW 15V BBB
Favorite materials. Steel: Maxamet, Rex121, 15V, S90V, Magnacut. Scales: Carbon Fiber, Titanium, Micarta, G10, FRN.
User avatar
BeggarSo
Member
Posts: 1213
Joined: Sun Sep 12, 2021 6:50 pm

Re: Anodized my NAND and oxidized my screws

#15

Post by BeggarSo »

Pengubandit wrote:
Sun Mar 29, 2026 11:47 pm
Haha, yeah very infrequent use. Once every couple of months maybe.

Someday I might turn it into a semi-profession but for now I'm experimenting, modding/customizing and learning.
I have several Titanium knives a CF and Titanium Knifeworks Spyderco Military Exclusive in S90V comes to mind.

Right now getting ready to do some ferric chloride acid wash and stone wash experiments but I have always been fascinated by anodizing.

Thank you for sharing your simple practical set up it has encouraged me to add this to my list of learning and new projects.
Really wanting to buy a 15V Serrated Bodacious. Well a guy can dream, can’t he? :sparkler
User avatar
Mr Blonde
Member
Posts: 7803
Joined: Fri Sep 24, 2004 10:33 am
Location: The Netherlands, Europe, Earth
Contact:

Re: Anodized my NAND and oxidized my screws

#16

Post by Mr Blonde »

That looks great! If Spyderco ever needed any inspiration for a future exclusive or sprint of the NAND, this is it.
My Spyderco Pics & Reviews: www.spydercollector.com
Last website update: 04-19-2026 Instagram
User avatar
BeggarSo
Member
Posts: 1213
Joined: Sun Sep 12, 2021 6:50 pm

Re: Anodized my NAND and oxidized my screws

#17

Post by BeggarSo »

Agreed Chris Reeve charges more for anodized models, then again they dont have many models so...
Really wanting to buy a 15V Serrated Bodacious. Well a guy can dream, can’t he? :sparkler
User avatar
Pengubandit
Member
Posts: 101
Joined: Tue Feb 24, 2026 11:26 pm
Location: Connecticut

Re: Anodized my NAND and oxidized my screws

#18

Post by Pengubandit »

Don't worry about messing it up either Beggar, the coating is only a few nanometers thick and a quick beadblast or stonewash will take it off hundred(s) of times before it starts to affect the amount of material being removed to a noticeable amount. Sanding can do it too but I imagine that removes slightly more materialm possibly only donzens of retrys.

One thing I've noticed is that polished or shinier satin takes the color better than a more matte sandlasted finish. Sandblasted comes out a bit more dull/gray in comparison. You can also mask for color patterns like dying, but I haven't done too much of that.

I'll give a higher voltage a try soon with my Spydiechef and share that.
Current favorite Spydies: Drunken, Spydiechef, Sage5 LW Rex121, Manix 2 LW 15V BBB
Favorite materials. Steel: Maxamet, Rex121, 15V, S90V, Magnacut. Scales: Carbon Fiber, Titanium, Micarta, G10, FRN.
User avatar
BeggarSo
Member
Posts: 1213
Joined: Sun Sep 12, 2021 6:50 pm

Re: Anodized my NAND and oxidized my screws

#19

Post by BeggarSo »

Cool for some reason my blue one spydiechef changes color when handled is that normal?
Really wanting to buy a 15V Serrated Bodacious. Well a guy can dream, can’t he? :sparkler
User avatar
Paul Ardbeg
Member
Posts: 1758
Joined: Sun May 14, 2023 11:39 am
Location: The Netherlands, EU, Earth

Re: Anodized my NAND and oxidized my screws

#20

Post by Paul Ardbeg »

Pengubandit wrote:
Mon Mar 30, 2026 7:10 pm
Don't worry about messing it up either Beggar, the coating is only a few nanometers thick and a quick beadblast or stonewash will take it off hundred(s) of times before it starts to affect the amount of material being removed to a noticeable amount. Sanding can do it too but I imagine that removes slightly more materialm possibly only donzens of retrys.

One thing I've noticed is that polished or shinier satin takes the color better than a more matte sandlasted finish. Sandblasted comes out a bit more dull/gray in comparison. You can also mask for color patterns like dying, but I haven't done too much of that.

I'll give a higher voltage a try soon with my Spydiechef and share that.

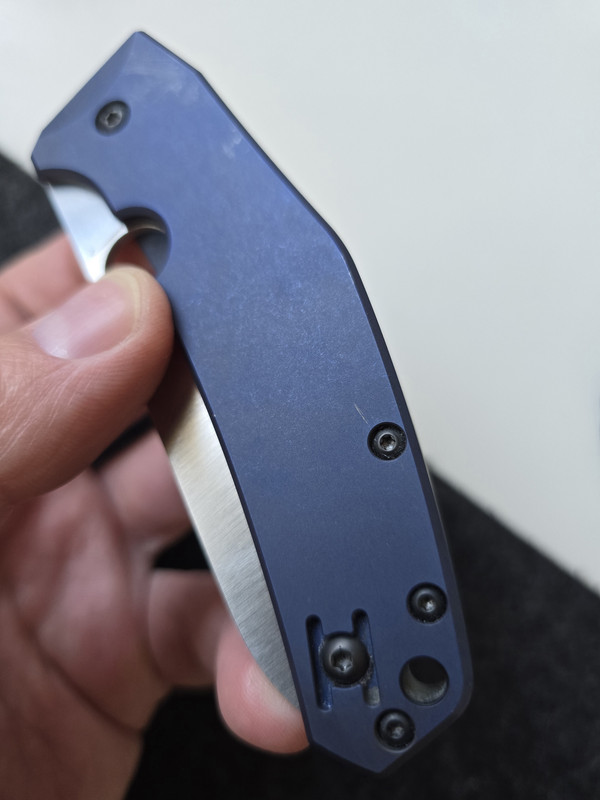

Buddy of mine did the anodisation on my Chef last year, it's a bit towards blurple, but more blue than purple.
