«Other» disassembly

[Makunochimaster]

0545 very flimsy for a zt

0350, torsion bar was broken


Benchmade 586s mini barrage



Bugout 535

[8th_Note]

0545 very flimsy for a zt

0350, torsion bar was broken


Benchmade 586s mini barrage



Bugout 535

Neat thread. I'll try to add some later this week

[8th_Note]

Civivi Elementum.

D2 blade, micarta scales, full skeletonized steel liners, ceramic ball bearings, ceramic detent ball, T8 hardware

[8th_Note]

Benchmade Griptillian

S30V steel, FRN handles, partial liners, axis lock, phosphor bronze washers, T6 hardware, T10 pivot

[8th_Note]

Kizer Banish

This is a small button lock, designed by Justin Lundquist. It has a 2.3" 154CM blade sheepsfoot blade, very nice micarta scales, full steel liners, ceramic ball bearings, T8 hardware and pivot.

[8th_Note]

Kizer Original Serape

154CM drop-point blade that is 3", G10 scales with partial steel liners, button plunge lock, ceramic ball bearings, T6 hardware and T8 pivot

[8th_Note]

CJRB Locust

AR-RPM9 dagger-style blade that is 3.15", G10 and stainless scales, full steel liners, button plunge lock with secondary safety lock, ceramic ball bearings, T8 and T6 hardware with T8 pivot

This thing has a ton of parts. It took 3 hands to re-assemble it

[Makunochimaster]

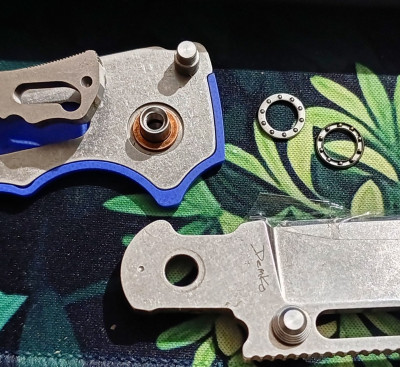

Demko AD20.5

[Makunochimaster]

microtech ultratech d/e 2022

zero tolerance 0357

[Brock O Lee]

These CRK's are simple and robust. Two of the reasons why I like them so much.

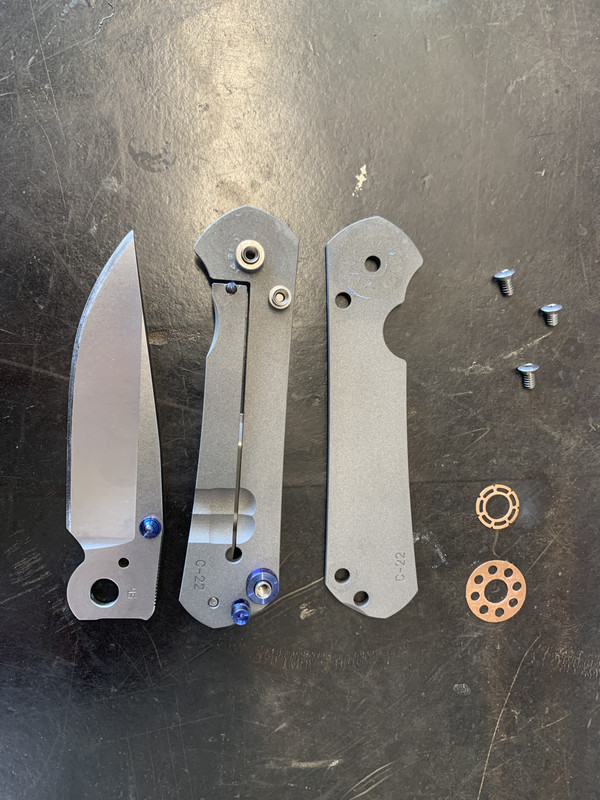

Sebenza 31

Pivot bushing and 2mm hex hardware all around (including a single clip screw on all three these models).

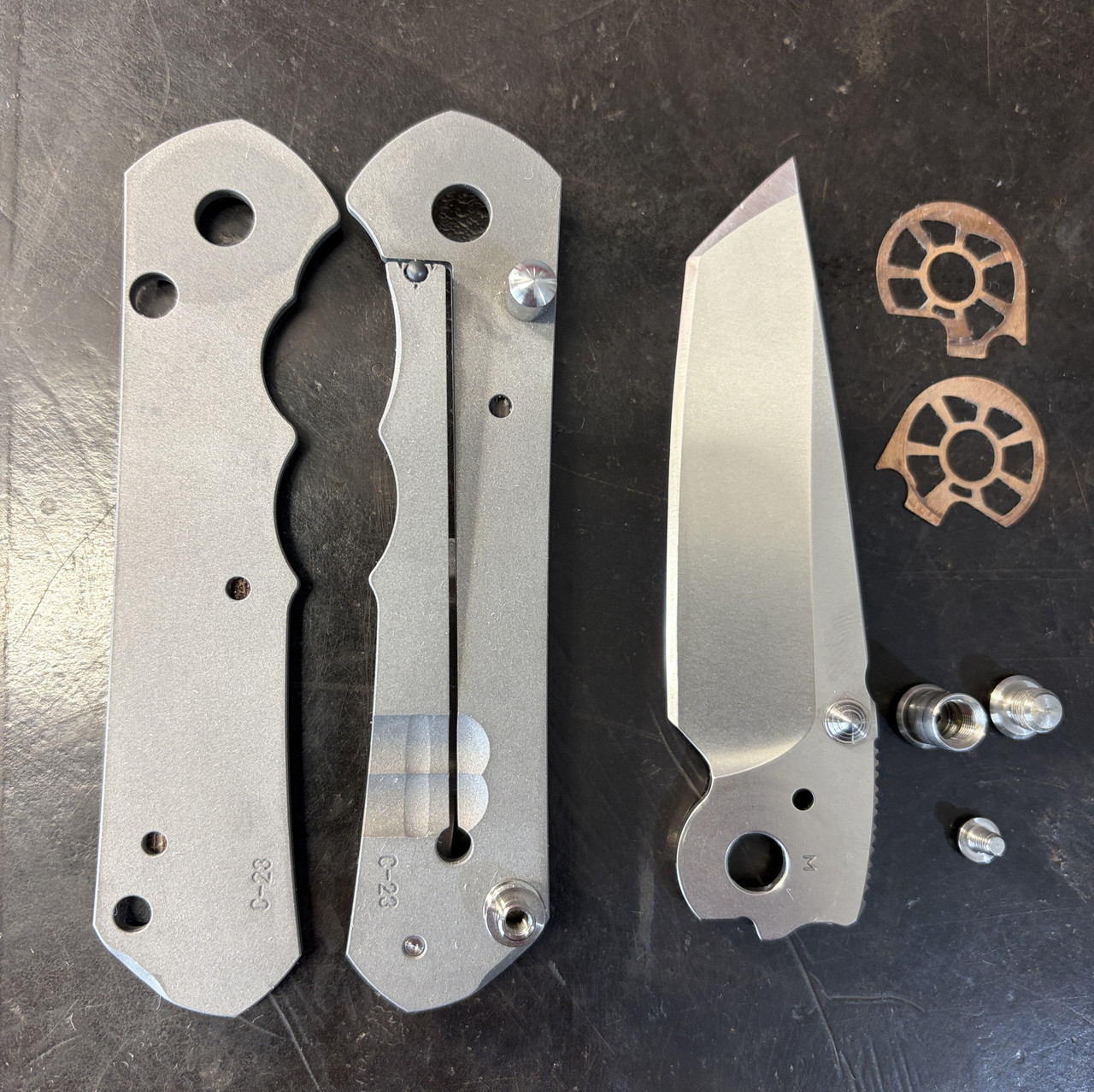

Inkosi

Overbuilt pivot, PB washers, and stop pin. No pivot bushing. 1/8" and 2mm hex hardware. No lanyard post.




Umnumzaan

No pivot bushing, no stop pin. 1/8" and 2mm hex hardware. Only one body stand-off when you get rid of the lanyard post.
