I was about to start to sharpen my new Pacific Salt 2 in H1 for the first time. Since it was mentioned around here that the steel can take a pretty acute angle I decided to give it 15 deg edge bevel, but then I thought - wait, go a little lower than that and then it will be much easier to sharpen at 15 deg. But that meant I needed to find a way to change the angle on the Sharpmaker by about 1 degree.

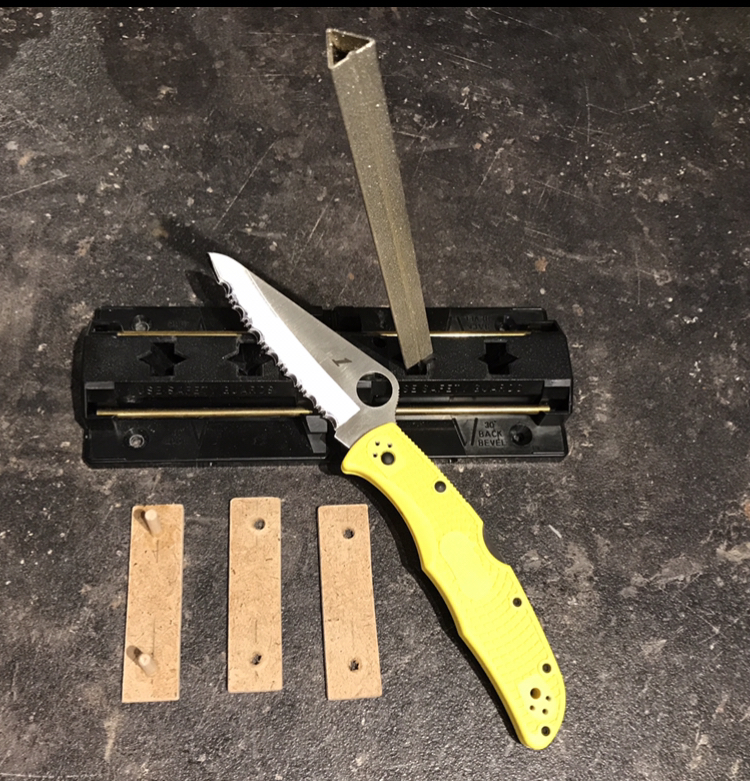

So I came up with this very rudimentary idea and did a very quick and dirty job. I made 3 spacers, each ca 3mm thick and glued 2 wooden sticks into one of them and only drilled the rest. Each spacer adds ca. 1 degree tilt to the Sharpmaker. Depending on what side I apply them, I can get sharpening angles from 12 to 23 degrees:

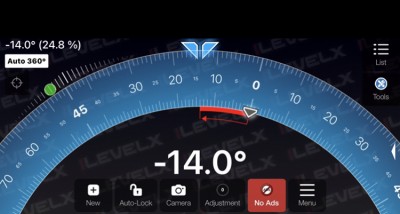

Here I have measured the angle of the rod in its 15 deg position with 1 spacer at the opposite site:
I am surprised but it actually works
So I came up with this very rudimentary idea and did a very quick and dirty job. I made 3 spacers, each ca 3mm thick and glued 2 wooden sticks into one of them and only drilled the rest. Each spacer adds ca. 1 degree tilt to the Sharpmaker. Depending on what side I apply them, I can get sharpening angles from 12 to 23 degrees:
Here I have measured the angle of the rod in its 15 deg position with 1 spacer at the opposite site:
I am surprised but it actually works
... I like weird ...
Re: Sharpmaker - angle fine tuning.
I like it. Might have to copy this.
All SE all the time since 2017
~David
~David
Re: Sharpmaker - angle fine tuning.
Well thats brilliant.
I bet a 3D printer could bang a few of these out in short order.

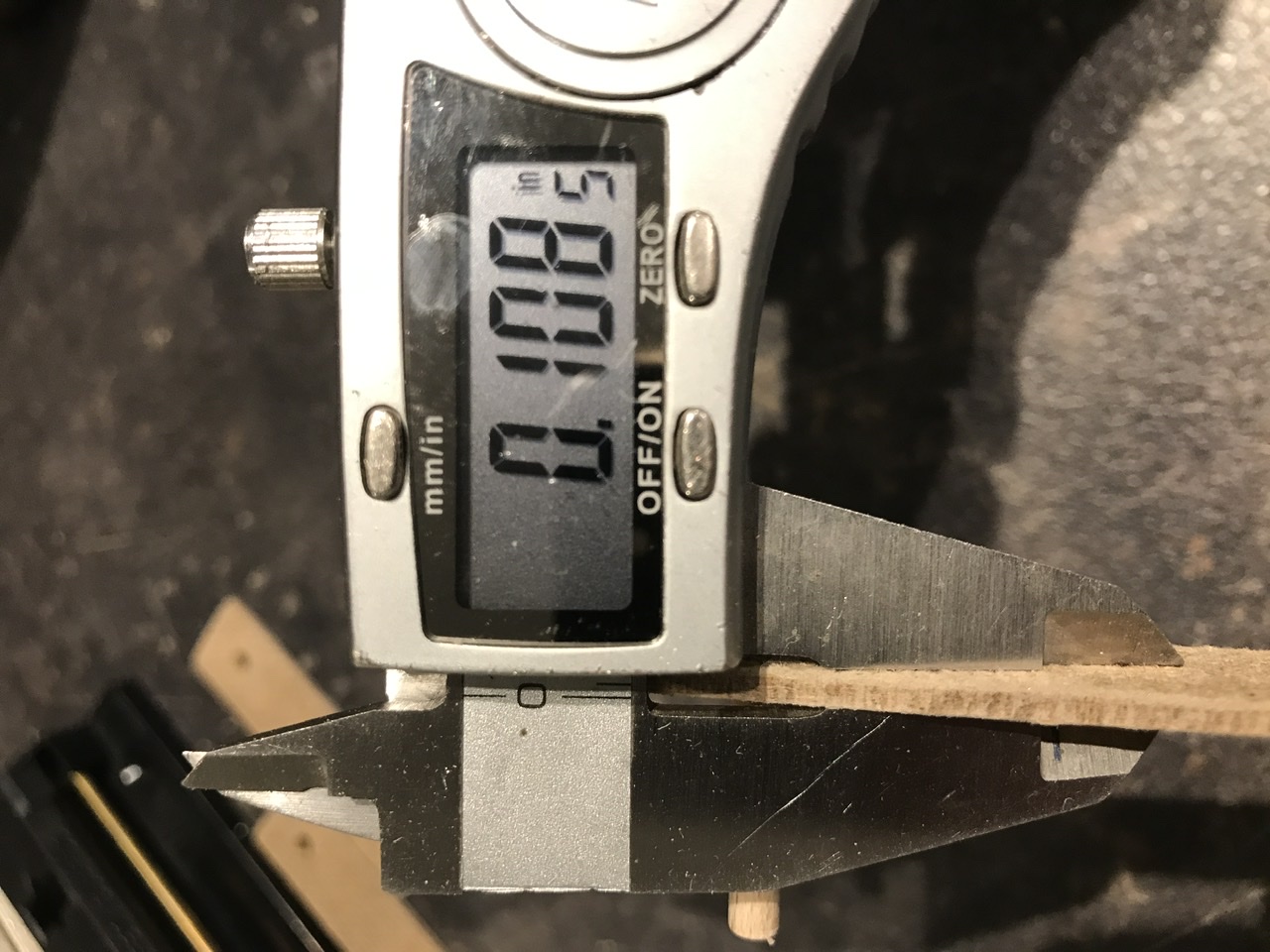

Do you have a set of Calipers? How thick are the spacers?
I bet a 3D printer could bang a few of these out in short order.
Do you have a set of Calipers? How thick are the spacers?
-Matt a.k.a. Lo_Que, loadedquestions135 I ❤ The P'KAL
"The world of edges has a small doorway in, but opens into a cavern that is both wide and deep." -sal
"The world of edges has a small doorway in, but opens into a cavern that is both wide and deep." -sal
"Ghost hunters scope the edge." -sal
- Surfingringo
- Member
- Posts: 5833
- Joined: Sun Sep 01, 2013 2:02 pm
- Location: Costa Rica
Re: Sharpmaker - angle fine tuning.
Nice work around. When going for lower angles, I typically put something under the very center of the base and just “see saw” it back and forth as I work from one side to the other. It’s been years since I’ve checked the exact angles but I believe a #2 pencil changes the angle by about 3-4 degrees per side. If you just want to change it by 1 degree or so you can use one of the brass safety rods or anything with the correct diameter. I find it pretty easy to be able to use both stones while just raising or lower one side.
Re: Sharpmaker - angle fine tuning.
This is cool, Matus!
I actually only use just one rod when sharpening SE (like probably many do), but never thought of that this makes changing the angle actually simpler than when using two rods
I actually only use just one rod when sharpening SE (like probably many do), but never thought of that this makes changing the angle actually simpler than when using two rods
Top three going by pocket-time (update March 24):
- EDC: Endura thin red line ffg combo edge (VG10); Wayne Goddard PE (4V), Endela SE (VG10)
-Mountains/outdoors: Pac.Salt 1 SE (H1), Salt 2 SE (LC200N), and also Wayne Goddard PE (4V)
- EDC: Endura thin red line ffg combo edge (VG10); Wayne Goddard PE (4V), Endela SE (VG10)
-Mountains/outdoors: Pac.Salt 1 SE (H1), Salt 2 SE (LC200N), and also Wayne Goddard PE (4V)
Re: Sharpmaker - angle fine tuning.
Thanks Matus!
-Matt a.k.a. Lo_Que, loadedquestions135 I ❤ The P'KAL
"The world of edges has a small doorway in, but opens into a cavern that is both wide and deep." -sal
"The world of edges has a small doorway in, but opens into a cavern that is both wide and deep." -sal
"Ghost hunters scope the edge." -sal
Re: Sharpmaker - angle fine tuning.
Very nice, Matus.

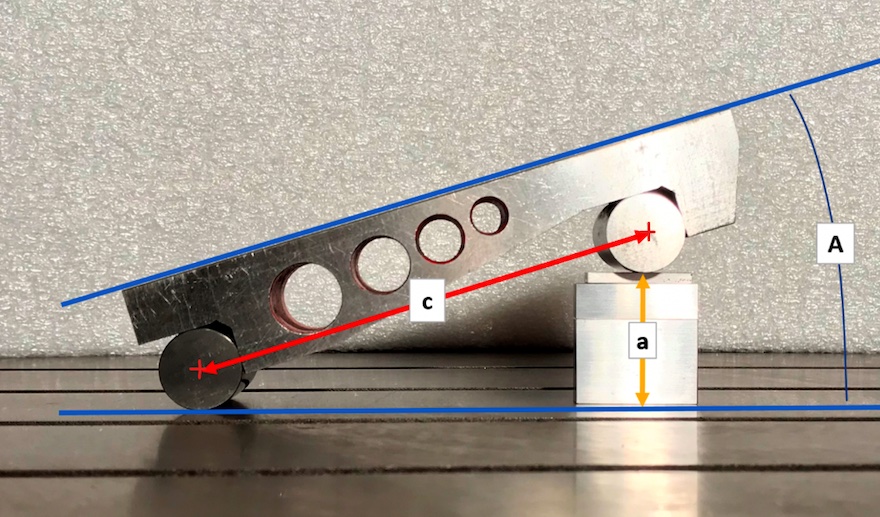

Your solution is very similar to the Sine Bar that's been used by machinists since Hipparchus first invented trigonometry back when dinosaurs roamed the Earth. Take a look at the attached image. A is the desired angle, c is given, and a is a stack of precision blocks of whatever height is needed to make the math work out.
Re: Sharpmaker - angle fine tuning.
Nice one ^^ I was waiting for my brother to 3D print the 17° adaptator but I might try something similar with my angle cube.
In the collection : Lots of different steels, in lots of different (and same) Spydercos.
Robin. Finally made an IG : ramo_knives
MNOSD member 004* aka Mr. N5s
Robin. Finally made an IG : ramo_knives
MNOSD member 004* aka Mr. N5s
-
- Member
- Posts: 1561
- Joined: Sun Aug 28, 2005 8:57 am
- Location: ESVA
- Contact:
Re: Sharpmaker - angle fine tuning.
I feel like a caveman. I just hold the knife at a different angle.
Chris
Haves: Lava, Delica 4 Sante Fe Stoneworks, Spy-DK x2,
Just say NO to lined FRN
Haves: Lava, Delica 4 Sante Fe Stoneworks, Spy-DK x2,
Just say NO to lined FRN
Re: Sharpmaker - angle fine tuning.
I was just working on a cad file for this.
"Some call me...Tim?"
Re: Sharpmaker - angle fine tuning.
That's pretty cool, Matus.
I haven't given this much thought but was thinking about tapping the fastening holes in the SM's base and using cap screws or similar to jack up and adjust the angle that way.
I haven't given this much thought but was thinking about tapping the fastening holes in the SM's base and using cap screws or similar to jack up and adjust the angle that way.
A day without laughter is a day wasted. ~ Charlie Chaplin
- bbturbodad
- Member
- Posts: 1180
- Joined: Sun Mar 24, 2019 9:18 am
Re: Sharpmaker - angle fine tuning.
I printed these that I found on Thingiverse (can't find them on there now though) and they work really well.
https://www.thingiverse.com/thing:4755125
One is like a massive sharpmaker the other attach to the 15(30) degree slots and convert them to several different angles.
https://www.thingiverse.com/thing:4755125
One is like a massive sharpmaker the other attach to the 15(30) degree slots and convert them to several different angles.
-Turbo
Re: Sharpmaker - angle fine tuning.
I totally love the number of solutions you guys have come up with.
Another idea (I did not pursue) would be having the slots on hinges and be able to set the angle continuously, but it would be probably pretty complicated to make it mechanically stable and also actually know what angle is being set. It would probably take some sprocket wheels and locking mechanism. Anyone feel like making a prototype out of LEGO?
. Yes - this way as you mention it crossed my mind (would be a very elegant solution), but it would take a lot more thinking (for me) to make it happe to make it reliable and easy to use.
An interesting option too.bbturbodad wrote: I printed these that I found on Thingiverse (can't find them on there now though) and they work really well.
https://www.thingiverse.com/thing:4755125
One is like a massive sharpmaker the other attach to the 15(30) degree slots and convert them to several different angles.
Another idea (I did not pursue) would be having the slots on hinges and be able to set the angle continuously, but it would be probably pretty complicated to make it mechanically stable and also actually know what angle is being set. It would probably take some sprocket wheels and locking mechanism. Anyone feel like making a prototype out of LEGO?
... I like weird ...
Re: Sharpmaker - angle fine tuning.
With 3D printing being so accessible now, it's entirely possible to make an adjustable Sharpmaker base. You just need to make a rod holder that has a bolt going through it centered beneath the rod that mounts into a base, and then put a butterfly screw or whatever on it so you can loosen and tighten it. Then you just need an angle cube to find your angle and set it. You can 3D print the base too. I just don't have a 3D printer or the know how to do any of this stuff. Maybe I should learn it.
All SE all the time since 2017
~David
~David
Re: Sharpmaker - angle fine tuning.
I need some assistance this morning, coffee still brewing. Most, if not all, my passes are on the flats. Do these only work on the points and not the flats?
